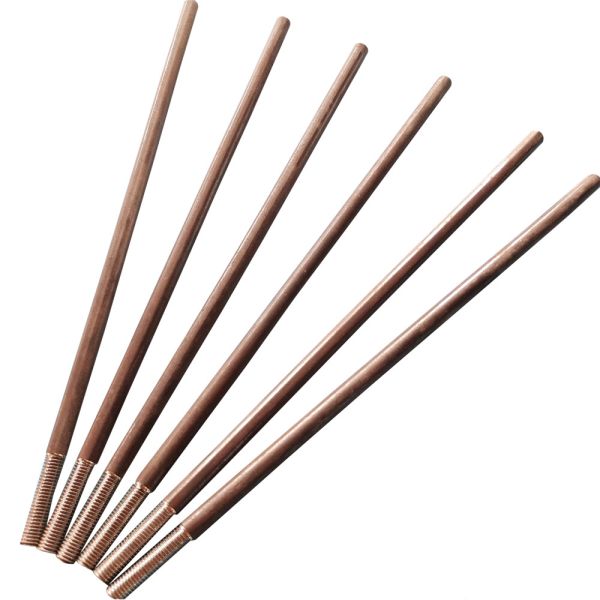

Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12

  • 1
  • 2
  • 3

Brand Name : Ohmalloy

Model Number : Ohmalloy142

Certification : CE

Place of Origin : China

MOQ : 5kg

Payment Terms : L/C, T/T,

Supply Ability : 2000KG/WEEK

Delivery Time : within 7 days after payment

Packaging Details : spool

Application : Heating,Industry,furnace heating wire

Shape : wire

Material : FeCrAl

Chemical composition : Fe Cr Al

Dimensions : 12mm

Surface : Bright and soft

Contact Now

Terminal bar Cr25Al5 dia 12mm, length 405mm thread M12

Product brief introduction

OhmAlloy142B is a iron-chromium-aluminium alloy (FeCrAl alloy) characterized by high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is suitable for use at temperatures up to 1250°C.
Typical applications for OhmAlloy142B are used in electric ceramic cooktop,industrial furnace,heaters.

Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12

Normal composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.025 0.70 Max 0.60 23.0~26.0 Max 0.60 4.5~6.5 Bal.


Typical Mechanical properties

Yield strength Tensile Strength Elongation
Mpa Mpa %
500 700 23


Typical Physical properties

Density (g/cm3) 7.10
Electrical resistivity at 20℃(Ωmm2/m) 1.42
Conductivity coefficient at 20℃ (WmK) 13

Coefficient of thermal expansion
Temperature Coefficient of Thermal Expansion x10-6/℃
20 ℃- 1000℃ 15

Specific heat capacity
Temperature 20℃
J/gK 0.46

Melting point (℃) 1500
Max continuous operating temperature in air (℃) 1250
Magnetic properties

non-magnetic


Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12

Temperature Factor of Electrical Resistivity

20℃ 100℃ 200℃ 300℃ 400℃ 500℃ 700℃ 800℃ 900℃ 1000℃ 1100℃ 1200℃ 1300℃
1 1.002 1.005 1.008 1.013 1.021 1.038 1.040 1.042 1.044 1.046 1.047


Style of supply

Alloys Name Type Dimension
OhmAlloy142BW Wire D=0.03mm~8mm
OhmAlloy142BR Ribbon W=0.4~40 T=0.03~2.9mm
OhmAlloy142BS Strip W=8~250mm T=0.1~3.0
OhmAlloy142BF Foil W=6~120mm T=0.003~0.1
OhmAlloy142BB Bar Dia=8~100mm L=50~1000


Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12
Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12Cr25Al5 Dia 12mm Terminal Bar Length 405mm Thread M12
